Circuit Board Assembly of Conditioner Printed Wire Assembly
(click on thumbnail to enlarge)

A and M Electronics, Inc. circuit board assembly services deliver quick turnaround of high quality military specification assemblies in quantities from 10-100 pieces. From component sourcing through to inspected and fully tested final products.

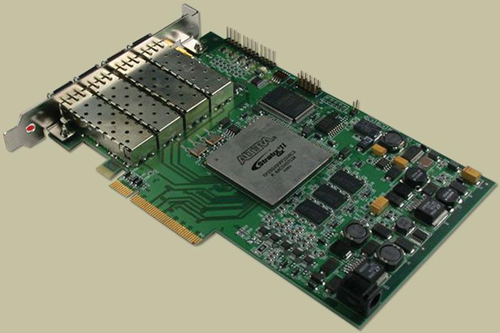

The conditioner printed wire assembly highlighted here was assembled for a defense industry customer. To ensure error-free production, we verified the solder paste stencil and feeder set-ups as well as placement accuracy on test boards prior to full production. We employed our Juki pick and place machine to mount the all of components, In addition to 100% visual inspections, we utilized sophisticated automated optical inspection equipment to verify the integrity of the solder joints, component values and component placement.

Assembly of boards such as this is something our ANSI/J-STD-001 certified team excels at accomplishing every day. We also operate an ISO 9001:2015 certified facility, which means when you choose A and M Electronics, you can be assured of receiving the assemblies that deliver long-term, reliable operation and meet stringent Mil-Spec requirements. Our personnel are certified to IPC-A-610 & ANSI/J-STD-001 All Classes. Contact us today to learn more.

Circuit Board Assembly Project Highlights

Circuit Board Assembly Capabilities Applied/Processes

Circuit Board Assembly
Component Sourcing

Equipment Used to Manufacture Part

Juki pick and place machine

Ersa Wave Soldering Machine

Overall Part Dimensions

Component Height: up to 0.060″

Placement accuracy

±80µm (3Sigma)

In process testing/inspection performed

100% Visual Inspection

A.O.I. (Automatic Optical Inspection)

Industry for Use



Prototype to Production

Delivery/Turnaround Time

2 Weeks (standard turn) Expedites available (1 week add 50%)

Delivery Location


Standards Met

Customer Specifications,
PWA IAW ANSI/J-STD-001, Class 2

ASME Y14.24-1999

Product Name

Conditioner Printed Wire Assembly
